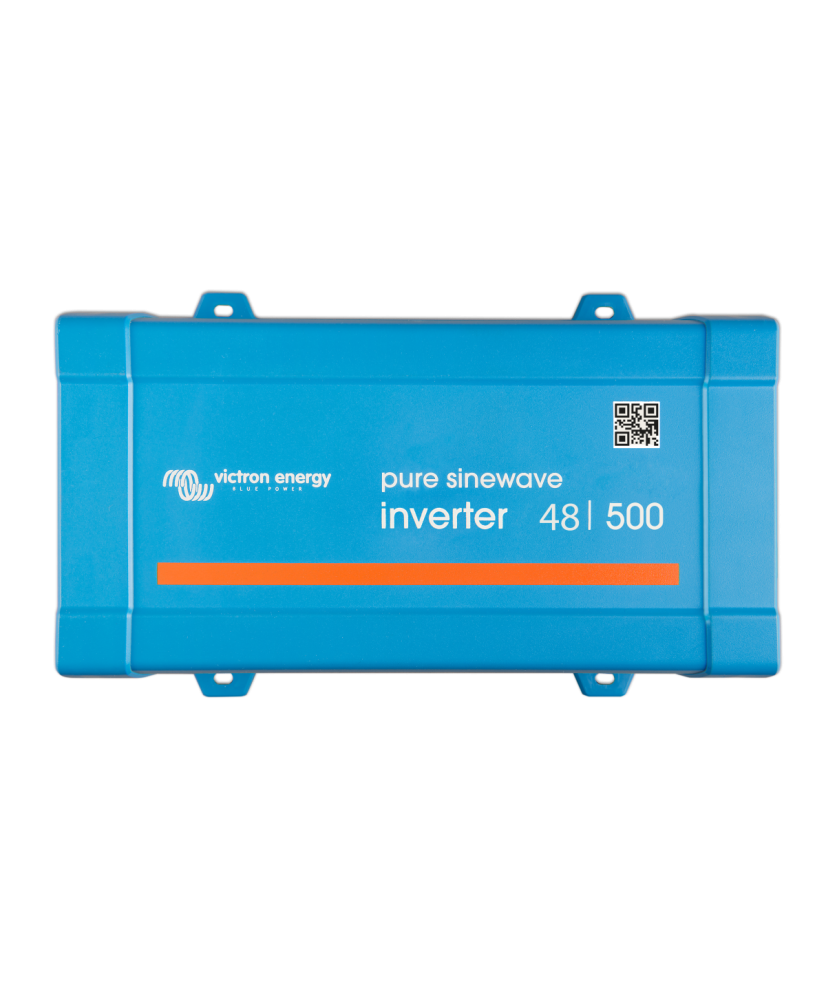

Phoenix 48/500 230V VE.Direct IEC - 48V inverter, 500 VA
Phoenix 48/500 230V VE.Direct IEC is an inverter that converts the voltage of a 48V battery into 230V AC, powering domestic equipment from leisure or automotive batteries. It delivers 400 W continuous and 900 W peak power, has a VE.Direct port for configuration and monitoring, and loads connect to its IEC-320 outlet. It is short-circuit proof and protected against overheating.
Main features:
- Battery voltage: 48 V (36.8-62 V)
- Continuous power: 400 W / 500 VA at 25 °C
- Peak power: 900 W, for LED converters, halogen lamps, power tools
- Maximum efficiency: 91 %
- Output socket: IEC-320, male plug included
- Communication: VE.Direct, adjustable 210-245 V output, configurable cut-off levels
Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.
Technical specifications
| Nominal battery voltage | 48 V |
|---|
| Continuous output power at 25 °C (VA) | 500 VA |
|---|
| Continuous output power at 25 °C (W) | 400 W |
|---|
| Continuous output power at 40 °C | 350 W |
|---|
| Peak power | 900 W |
|---|
| AC output voltage | 230 V |
|---|
| Frequency | 50 Hz |
|---|
| DC input voltage range | 36.8 … 62 V |
|---|
| DC low shutdown | 37.2 V |
|---|
| DC low restart and alarm | 43.6 V |
|---|
| Dynamic low DC shutdown | Yes |
|---|
| Battery charged detection voltage | 56 V |
|---|
| Maximum efficiency | 91 % |
|---|
| Zero load power | 9 W |
|---|
| Zero load power in ECO mode | 3 W |
|---|
| ECO mode retry interval | 2.5 s |
|---|
| ECO mode stop/start power setting | Adjustable |
|---|
| Remote on/off terminal | Yes |
|---|
| Communication port | VE.Direct |
|---|
| Fully programmable | Yes |
|---|
| Protections | Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload |
|---|
| Operating temperature range | -40 … 65 °C |
|---|
| Maximum humidity | 95 % |
|---|
| Power derating | 1.25 % |
|---|
| AC outlet socket | IEC-320 (male plug included) |
|---|
| Battery connection terminals | Screw terminals 10 mm² (8 AWG) |
|---|
| Remote control terminal | Screw terminal two pole |
|---|
| Colour | Blue (RAL 5012) |
|---|
| Material | Steel chassis and plastic cover |
|---|
| Protection category | IP21 |
|---|
| Weight | 3.9 kg |
|---|
| Height | 86 mm |
|---|
| Width | 172 mm |
|---|
| Depth | 275 mm |
|---|
| Safety | EN-IEC 60335-1, EN-IEC 62109-1 |
|---|
| EMC | EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 |
|---|
| Automotive directive | ECE R10-4 |
|---|
