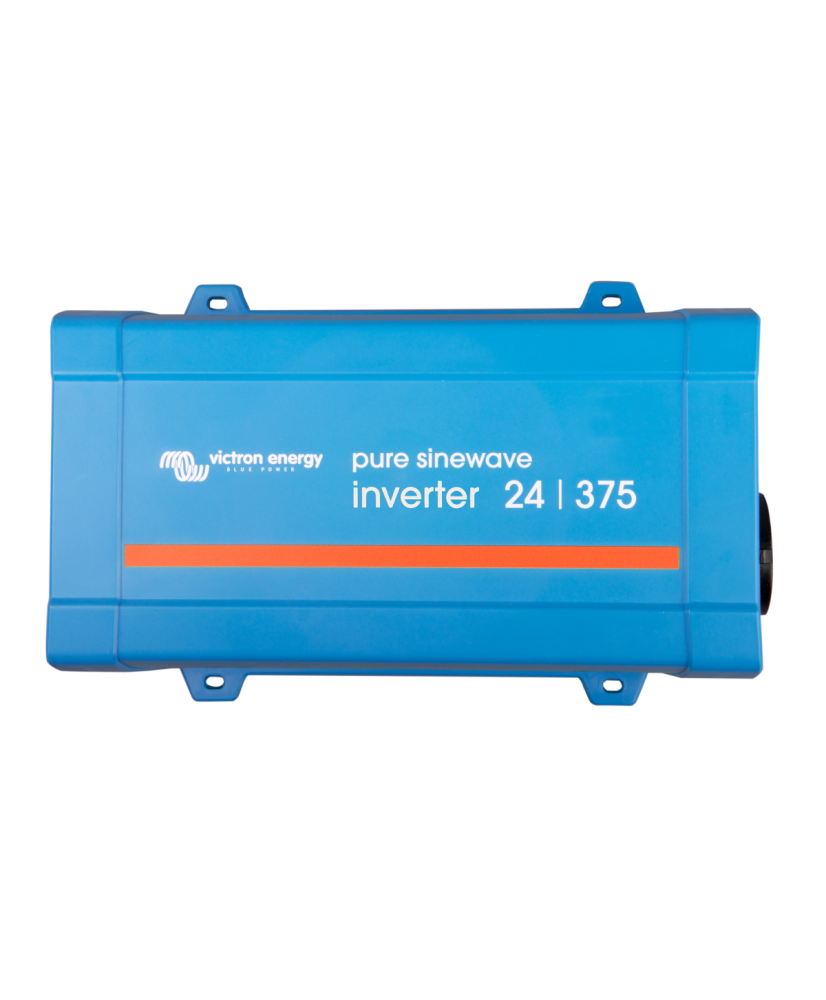

Phoenix 24/375 230V VE.Direct IEC - 24V inverter, 375 VA
Phoenix 24/375 230V VE.Direct IEC is a 375 VA inverter (300 W continuous at 25 °C) that powers 230V AC domestic equipment from 24V leisure or automotive batteries. The VE.Direct port allows full configuration and monitoring, while ECO mode reduces no-load consumption to 1.4 W. The output socket is of IEC-320 type.
Main features:
- Battery voltage: 24 V (18.4-34 V)
- Continuous power: 300 W / 375 VA at 25 °C
- Peak power: 700 W, for LED converters, halogen lamps, power tools
- Maximum efficiency: 89 %
- Output socket: IEC-320, male plug included
- Communication: VE.Direct, adjustable 210-245 V output, configurable cut-off levels
Inverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.
Technical specifications
| Nominal battery voltage | 24 V |
|---|
| Continuous output power at 25 °C (VA) | 375 VA |
|---|
| Continuous output power at 25 °C (W) | 300 W |
|---|
| Continuous output power at 40 °C | 260 W |
|---|
| Peak power | 700 W |
|---|
| AC output voltage | 230 V |
|---|
| Frequency | 50 Hz |
|---|
| DC input voltage range | 18.4 … 34 V |
|---|
| DC low shutdown | 18.6 V |
|---|
| DC low restart and alarm | 21.8 V |
|---|
| Dynamic low DC shutdown | Yes |
|---|
| Battery charged detection voltage | 28 V |
|---|
| Maximum efficiency | 89 % |
|---|
| Zero load power | 6.1 W |
|---|
| Zero load power in ECO mode | 1.4 W |
|---|
| ECO mode retry interval | 2.5 s |
|---|
| ECO mode stop/start power setting | Adjustable |
|---|
| Remote on/off terminal | Yes |
|---|
| Communication port | VE.Direct |
|---|
| Fully programmable | Yes |
|---|
| Protections | Excessive DC ripple, High battery voltage, Low battery voltage, Output short-circuit, Over temperature, Overload |
|---|
| Operating temperature range | -40 … 65 °C |
|---|
| Maximum humidity | 95 % |
|---|
| Power derating | 1.25 % |
|---|
| AC outlet socket | IEC-320 (male plug included) |
|---|
| Battery connection terminals | Screw terminals 10 mm² (8 AWG) |
|---|
| Remote control terminal | Screw terminal two pole |
|---|
| Colour | Blue (RAL 5012) |
|---|
| Material | Steel chassis and plastic cover |
|---|
| Protection category | IP21 |
|---|
| Weight | 3 kg |
|---|
| Height | 86 mm |
|---|
| Width | 165 mm |
|---|
| Depth | 260 mm |
|---|
| Safety | EN-IEC 60335-1, EN-IEC 62109-1 |
|---|
| EMC | EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 |
|---|
| Automotive directive | ECE R10-4 |
|---|
