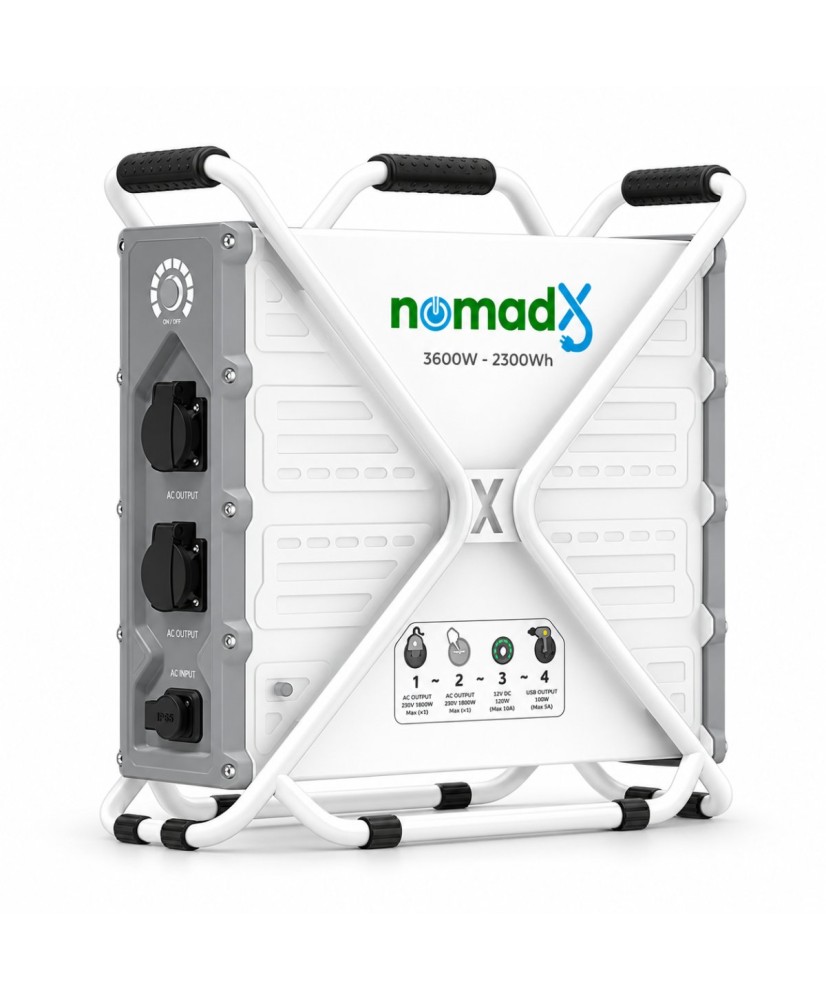

Portable battery generator nomadX 3600 W 2.3 kWh KOG

nomadX - Portable battery generator 3600 W 2.3 kWh

nomadX is a 3600 W portable battery generator with 20 kW peak power and 2.3 kWh capacity, designed for construction sites, emergency response and off-grid work. It directly powers 230 V electric tools, including those with heavy starting loads, without diesel, without emissions and with a noise level below 30 dB.

Main features:

• Rated power: 3600 W, peak 20000 W
• Battery capacity: 2304 Wh
• AC output: 230 V pure sine wave, 50/60 Hz, 16 A
• Charging: 1200 W from the grid, full charge in 2.3 h

What it powers on a single charge:

Indicative values, at 230 V. Actual runtime depends on the tool, the material and the working method.

• Welding machine 3 kW: 45-55 welds with Ø2.5 mm electrode or 35-45 welds with Ø3.2 mm electrode
• Core drill 3.2 kW: up to 11 holes Ø150 mm, 150 mm deep
• Drill 1.4 kW: up to 243 holes Ø35 mm, 10 mm deep
• Saw 2.7 kW: up to 41 cuts in Ø110 mm cast iron pipe
• Demolition hammer 2.2 kW: breaks up to 8.2 tonnes of concrete slabs
• Industrial vacuum cleaner: up to 8500 litres vacuumed
• Pump 2.3 kW: up to 50000 litres, 780 l/min, 64 min of operation

App monitoring:

• Connection: Bluetooth, mobile app
• Real-time data: input and output power, cell temperature, battery level
• History: 100 charge and discharge records
• Alerts: fault type and recommended solution
• Remote settings: charging power and other parameters
• Updates: firmware via Bluetooth

Construction and applications:

The metal structure is shock resistant, the enclosure is rated IP54 against dust and water splashes, and natural cooling without a fan ensures silent operation. It is an alternative to the diesel generator, with zero emissions.

Applications: construction, renovation and fit-out, municipal maintenance, emergency response, tunnels, mining, surveying and prospecting, film production, fairs and events, garden and outdoor.

Technical specifications
