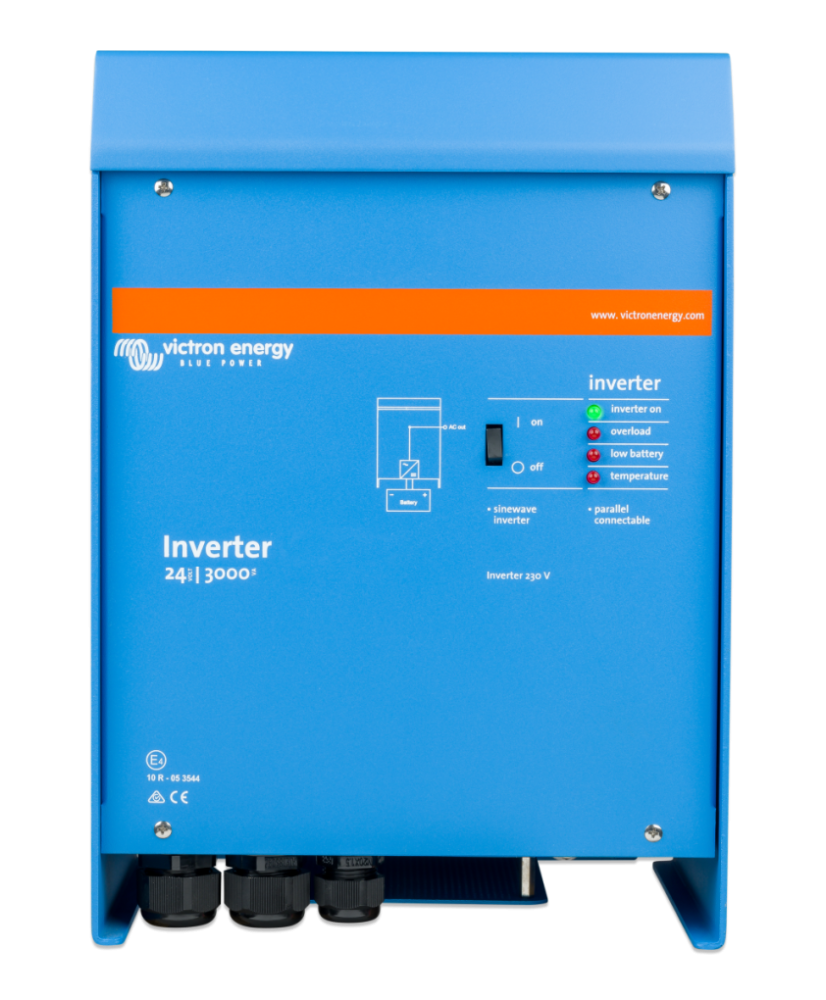

Phoenix 24/3000 230V VE.Bus - 24V SinusMax sine wave inverter
Phoenix 24/3000 230V VE.Bus is a pure sine wave inverter from the SinusMax range, combining high frequency and line frequency technologies for high efficiency and high peak power. It delivers 2400 W continuous from 24V batteries and can operate in parallel, up to 6 units, or in a three-phase configuration.
Main features:
- Battery voltage: 24 V (19-33 V)
- Continuous power: 2400 W / 3000 VA at 25 °C
- Peak power: 6000 W, for refrigeration compressors and electric motors
- Maximum efficiency: 94 %
- Parallel and three-phase: up to 6 units in parallel, three-phase capable
- Communication: VE.Bus, programmable relay, GX devices (e.g. Cerbo GX)
Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.
SinusMax - Superior engineering
Developed for professional duty, this range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.
Parallel and 3-phase operation capability
Up to 6 Inverters can operate in parallel to achieve higher power output. Six 24 V 5000 VA units, for example, will provide 24 kW / 30 kVA output power. Operation in 3-phase configuration is also possible.
Technical specifications
| Nominal battery voltage | 24 V |
|---|
| DC input voltage range | 19 … 33 V |
|---|
| AC output voltage | 230 V |
|---|
| Frequency selection | 50Hz |
|---|
| Continuous output power at 25 °C (VA) | 3000 VA |
|---|
| Continuous output power at 25 °C (W) | 2400 W |
|---|
| Continuous output power at 40 °C | 2200 W |
|---|
| Continuous output power at 65 °C | 1700 W |
|---|
| Peak power | 6000 W |
|---|
| Maximum efficiency | 94 % |
|---|
| Zero load power | 20 W |
|---|
| Zero load power in AES mode | 15 W |
|---|
| Zero load power in search mode | 10 W |
|---|
| Programmable relay | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
|---|
| Remote on/off terminal | Yes |
|---|
| Communication port | VE.Bus |
|---|
| Fully programmable | Yes |
|---|
| Parallel and 3-phase operation | Yes |
|---|
| Protections | Output short-circuit, Overload, High battery voltage, Low battery voltage, Over temperature, AC voltage on inverter output, Excessive DC ripple |
|---|
| Operating temperature range | -40 … 65 °C |
|---|
| Cooling | Yes |
|---|
| Maximum humidity | 95 % |
|---|
| Battery connection | M8 bolts (two for positive and two for negative connection) |
|---|
| AC connection | Screw terminals |
|---|
| Remote control terminal | Screw terminal two pole |
|---|
| Relay terminal | Screw terminal 3-pole |
|---|
| Colour | Blue (RAL 5012) |
|---|
| Material | Aluminium |
|---|
| Protection category | IP21 |
|---|
| Weight | 18 kg |
|---|
| Height | 364 mm |
|---|
| Width | 295 mm |
|---|
| Depth | 221 mm |
|---|
| Safety | EN-IEC 60335-1 |
|---|
| EMC | EN 55014-1, EN 55014-2 |
|---|
