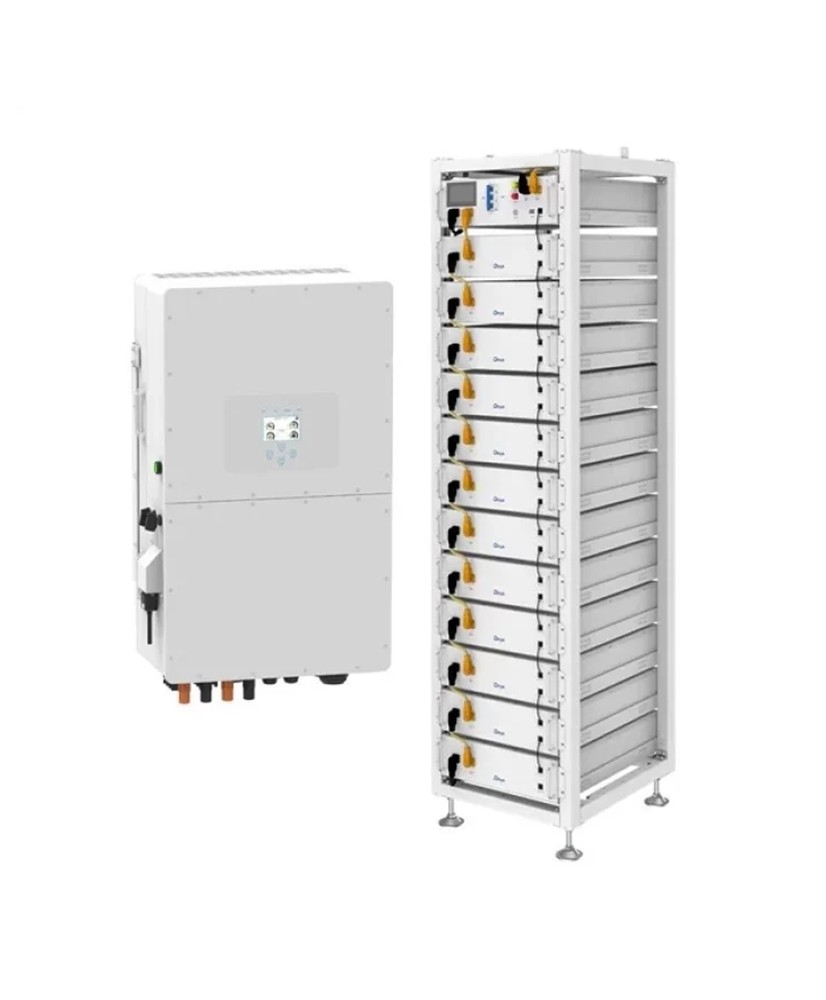

This energy storage system, composed of the 50kW Deye inverter model SUN-50K-SG01HP3 and the BOS-G60 batteries, offers a top solution for indoor installations, being ideal for both commercial and residential applications. Due to its superior features and advanced technology, this system is especially aimed at commercial premises where reliability and efficient energy management are essential.
Main Features
Power and Scalability : The 50kW inverter supports the parallel operation of up to 10 units, providing flexibility and scalability to meet various energy requirements.
Efficiency and Performance : With a maximum efficiency of 97.6%, the system optimizes energy production and reduces operational costs. It supports the efficient management of battery charging and discharging through an intelligent BMS.
Battery Technology : LiFePO4 cells ensure high safety and long life with over 6000 cycles at a DOD (Depth of Discharge) of 90%.
Easy Installation and Operation : The rack-mountable design and compact dimensions allow for quick and easy installation indoors. Access to software upgrades can be done via USB or optionally via WiFi.
Protection and Safety : The system includes built-in protections against overcharge, overdischarge, overcurrent and extreme temperatures, ensuring safe operation.
Ideal Applications
Commercial: Hospitals, schools and office buildings, where energy requirements are high and constantly fluctuating.
Residential: Large homes, offering an efficient way to reduce energy bills and increase energy independence.
Technical specifications
Inverter SUN-50K-SG01HP3:
Type : Three-phase hybrid inverter
Maximum output power : 50kW
Maximum charge/discharge current : 100A
Maximum battery voltage i: 800V
MPPT voltage range : 150-850V
Maximum efficiency : 97.6%
Integrated protections : Overvoltage protection, insulation resistance detection, residual current protection
Communication : Compatible with BMS systems via RS485 and CAN
Installation : Wall mounting with IP65 degree of protection
BOS-G60 accumulators :
Cell Chemistry : LiFePO4 (Lithium Iron Phosphate)
Nominal capacity : 100Ah per module
Total system energy : 61.44kWh
Nominal system voltage : 614.4V
Rated discharge current : 100A, with a discharge peak of 125A for 2 minutes
Operating temperature : -20°C to 55°C
Flexible configuration : The possibility of parallelizing several modules to expand the capacity
Smart BMS : Automatic charge and discharge management with overcharge, overdischarge and extreme temperature protection functions
Installation : Rack mountable, with dimensions and weight specified for ease of installation
This energy storage system is a reliable, efficient and sustainable solution, ideal for users who want to optimize energy consumption and benefit from the advantages of modern energy storage technology.
