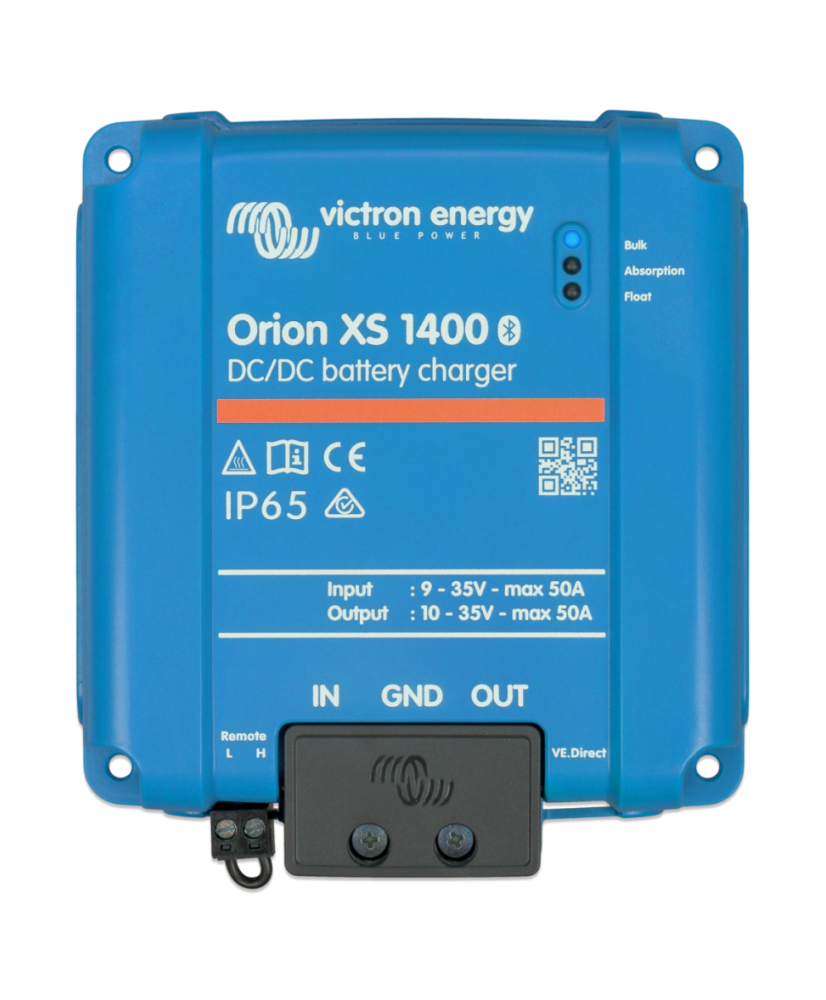

Orion XS 1400 - DC-DC battery charger 1400 W, 50 A
Orion XS 1400 is a 1,400 W DC-DC battery charger for dual battery systems fed by an alternator, including intelligent alternators. It accepts 9-35 V input and delivers 10-35 V output, with current configurable up to 50 A and up to 98.5 % efficiency without a fan, and is set up via Bluetooth.
Main features:
- Input/output voltage: 9-35 V / 10-35 V
- Charge current: 1-50 A, adjustable in 0.1 A steps
- Power and efficiency: 1,400 W at 40 °C, up to 98.5 % efficiency
- Charge algorithm: adaptive, 4-stage, 8 pre-programmed battery settings
- Connectivity: Bluetooth, VE.Direct, VE.Smart Networking, DVCC
- Protection rating: IP65
Engineered from the ground up, the Orion XS redefines adaptive DC-DC charging. For use in dual battery systems charged with an (intelligent) alternator. This device not only ensures top-tier performance but also guarantees the safety of your system.
Stay in charge with configurable input and output currents, and rest assured that your Orion XS will run at full capacity up to 40°C. The innovative aluminium circuit board cooling technology delivers an astonishing 98% efficiency without the need for fans.
As an integral part of your Victron system, the Orion XS offers full (remote) monitoring and control capabilities, giving you complete command of your device and system.
- Fully configurable
- Engine shutdown detection
- Intelligent charge algorithms
- Works with VictronConnect
- Remote monitoring optional
Technical specifications
| Input voltage range | 9 … 35 V |
|---|
| Input current setting range | 1 … 50 A |
|---|
| Output voltage range | 10 … 35 V |
|---|
| Output current setting range | 1 … 50 A |
|---|
| Output voltage tolerance | 0.25 % |
|---|
| Output voltage noise | 10 mVrms |
|---|
| Continuous output current at 40 °C | 50 A |
|---|
| Output derating above 40 °C | 1.5 % |
|---|
| Maximum short-circuit current | 50 A |
|---|
| Power rating | 1400 W |
|---|
| Continuous output power at 40 °C | 1400 W |
|---|
| No-load current consumption | 100 mA |
|---|
| Standby current consumption | 1.5 mA |
|---|
| Maximum efficiency | 98.5 |
|---|
| Use as power supply | Yes |
|---|
| Can be connected in parallel | Yes |
|---|
| Galvanic isolation | No |
|---|
| Programmable | Yes |
|---|
| Remote on/off terminal | Yes |
|---|
| Bluetooth | Yes |
|---|
| VictronConnect app | Yes |
|---|
| VE.Smart Networking | Yes |
|---|
| DVCC compatibility | Yes |
|---|
| Data communication | VE.Direct, Bluetooth |
|---|
| Protections | Low battery voltage, Over temperature, Overload, Short-circuit proof |
|---|
| Operating temperature range | -20 … 60 °C |
|---|
| Maximum humidity | 95 % |
|---|
| DC connection terminals | Screw terminals 21.2 mm² (4 AWG) |
|---|
| Remote on/off terminal connection | Pluggable screw terminals (included) |
|---|
| Colour | Blue (RAL 5012) |
|---|
| Material | ABS |
|---|
| Protection category | IP65 |
|---|
| Weight | 0.52 kg |
|---|
| Height | 138.1 mm |
|---|
| Width | 124.4 mm |
|---|
| Depth | 53 mm |
|---|
| Safety | IEC 62477-1 |
|---|
| Emission | EN 300328, EN 3011489-1, FCC 15B, ICES-003, all pending |
|---|
| Automotive directive | ECE R10-6 |
|---|
